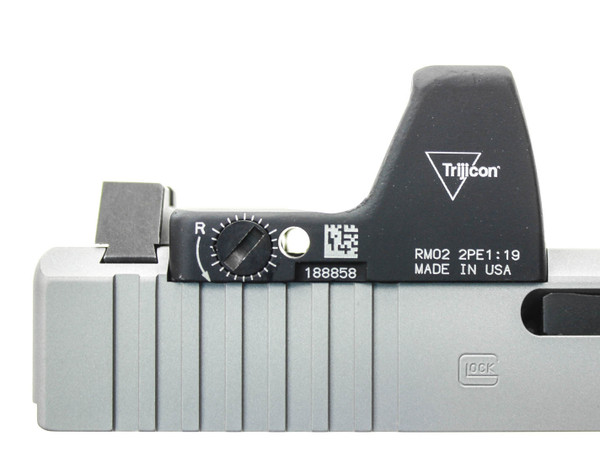

TRIJICON RMR OPTIC CUT MACHINING SERVICE FOR CUSTOMER SUPPLIED GLOCK SLIDES
INCLUDES (2) PAIRS 4-40 x 3/8" TORX: T10 MOUNTING SCREWS
SLIDE DISASSEMBLY INCLUDED FOR ALL ORDERS/SLIDE RE-ASSEMBLY AND IRON SIGHT INSTALL INCLUDED FOR ALL ORDERS (SOME LIMITATIONS APPLY)
NEW STRIKER CHANNEL LINER INSTALLED ON ALL SLIDE MACHINING ORDERS INCLUDING RE-FINISHING

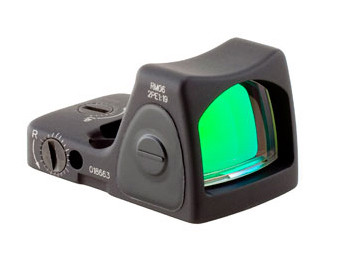

ALLOWS FOR MOUNTING ANY MODEL TRIJICON RMR (TYPE 1 OR TYPE 2) DIRECTLY TO YOUR GLOCK SLIDE WITH A REDUCED MOUNTED HEIGHT VERSUS DOVETAIL PLATES OR MOS SLIDES
OPTIC CUT DEPTH OF .150" INCLUDES FRONT INDEXING POSTS AND INTEGRAL INDEXING POSTS AROUND MOUNTING SCREW HOLES
OUR TRIJICON RMR CUT ALSO WORKS WITH THE HOLOSUN 507C/407C/508T OPTICS BUT REQUIRES SHORTER MOUNTING SCREWS (THOSE CAN BE ORDERED HERE) NOTE: RECOMMENDED ABSOLUTE CO-WITNESS IRON SIGHT HEIGHT IS DIFFERENT FOR THE HOLOSUN 507C/407C/508T DUE TO LARGER WINDOW SIZE. THOSE RECOMMEND HEIGHTS CAN BE FOUND ON THE 507C/407C/508T OPTIC CUT PAGE
NOT COMPATIBLE WITH HOLOSUN 509T ADAPTER PLATE
IRON SIGHT CO-WITNESS HEIGHTS:
AMERIGLO SIGHT SET (.260" TALL FRONT/.355" TALL REAR): LOWER 1/4 CO-WITNESS
AMERIGLO 1XL .315" TALL FRONT/.394" TALL REAR: LOWER 1/3 CO-WITNESS
AMERIGLO 3XL .365" TALL FRONT/.451" TALL REAR: ABSOLUTE CO-WITNESS
TRIJICON SUPPRESSOR SIGHTS .365" TALL FRONT/.451" TALL REAR: ABSOLUTE CO-WITNESS
FAQ's
Do I need to send my RMR in with the slide? No, we do not need your optic for fitting. The Integral Indexing Posts and our CNC machining process make it unnecessary.
Will you install my sights/suppressor sights if I send them in with my slide? Yes, iron sight installation is included for all slides, with the exception of slides machined with a new dovetail in front of optic not being re-finished. Just choose the appropriate option in the Iron Sight Installation drop down menu.
SHIPPING INSTRUCTIONS FOR SENDING IN YOUR SLIDE/PARTS
INCLUDES PATENTED OPTIC CUT TECHNOLOGY PIONEERED BY ZEV TECHNOLGIES (PATENT RE47335)
Finish was beautiful and consistent. Screws easily threaded in without risk of stripping threads. Love that it comes with extra screws, always want a backup for everything I have. Followed their recommendation on inch lbs+a little blue loctite, marked it with witness marks and this thing has been completely solid from day one. I legit do not work for these people their work is just that good where I felt the need to throw them some praise. If I need a slide milled I’m coming back here, awesome job Battle Werx team! Alan Zgoda on 26th May 2023
I just got my Glock 19 slide back today, did the RMR cut and Black DLC finish. The slide looks absolutely amazing, and I’m crazy OCD….it’s perfect. Sights are perfectly lined up, the finish is flawless looking, even where the sights were pressed in…..it didn’t mar the finish at all. I would highly recommend the DLC coating!!! BattleWerx definitely has my business in the future!
THANK YOU BATTLEWERX!!! David Yount on 1st Feb 2023
Fit, finish, and customer service is second to none. I get all my work done here. Not worried about zero shifting after removing, the fit is that perfect. You can absolutely trust the craftsmanship and quality. Thanks again for such great service. Unknown on 13th Dec 2022
